H.E.S.S. Gamma Ray Telescope in Namibia

2 August, 2013 / General Articles / By

By Derek Duckitt

On 29th June 2013 I paid a visit to the Hess Gamma ray telescope in Namibia while on holiday in the area.

I found this to be a fascinating and informative experience; the staff were most accommodating and helpful.

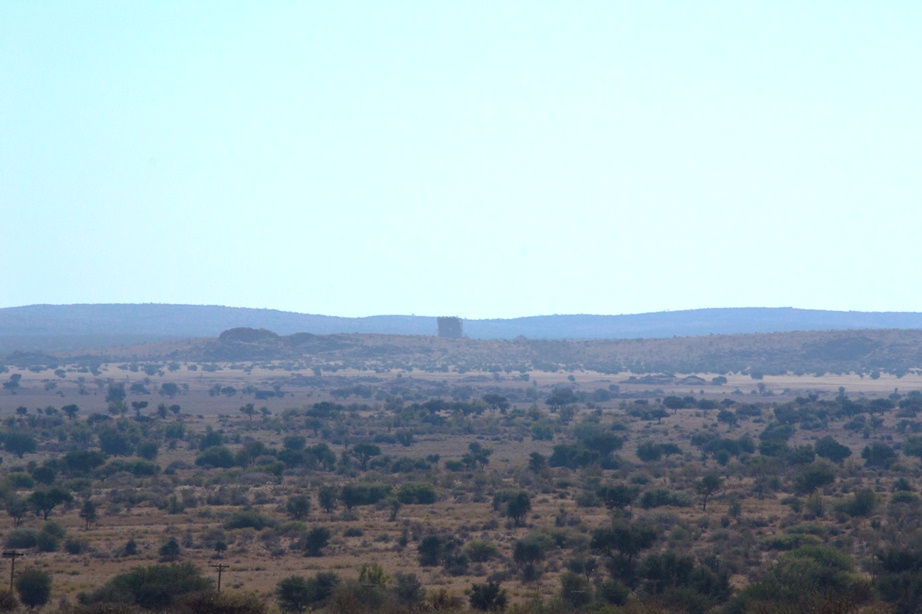

The HESS II structure dominates the landscape while still kilometers away.
The HESS II structure dominates the landscape while still kilometers away.
It seems that HESS II was still under construction when this Google Earth satellite image was taken.
It seems that HESS II was still under construction when this Google Earth satellite image was taken.

Quote from opening paragraph of the HESS web page:-

“H.E.S.S. is a system of Imaging Atmospheric Cherenkov Telescopes that investigates cosmic gamma rays in the energy range from 10s of GeV to 10s of TeV. The name H.E.S.S. stands for High Energy Stereoscopic System, and is also intended to pay homage to Victor Hess , who received the Nobel Prize in Physics in 1936 for his discovery of cosmic radiation.”

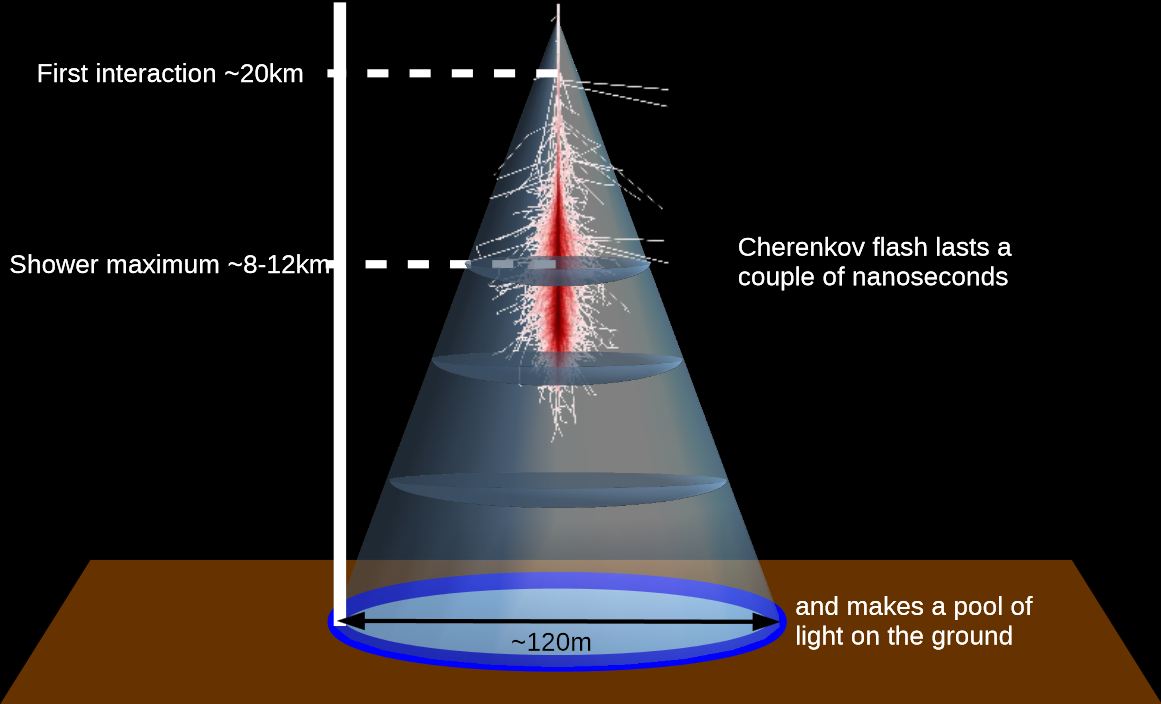

Cherenkov telescopes image gamma ray sources indirectly as described in the diagram below:-



A hadronic cosmic ray or high energy γ-ray incident on the Earth’s atmosphere triggers a particle cascade, or air shower. Relativistic charged particles in the cascade produce Cherenkov radiation, which is emitted along the shower direction, resulting in a light pool on the ground with a radius of ∼ 130 m. Cherenkov light is produced throughout the cascade development, with the maximum emission occurring when the number of particles in the cascade is largest, at an altitude of ∼ 10 km for primary energies of 100 GeV–1 TeV. Following absorption and scattering in the atmosphere, the Cherenkov light at ground level peaks at a wavelength, λ ≈ 300–350 nm. The photon density is typically ∼ 100 photons/m2 at 1 TeV, arriving in a brief flash of a few nanoseconds duration. This Cherenkov pulse can be detected from any point within the light pool radius by using large reflecting surfaces to focus the Cherenkov light on to fast photon detectors
A hadronic cosmic ray or high energy γ-ray incident on the Earth’s atmosphere triggers a particle cascade, or air shower. Relativistic charged particles in the cascade produce Cherenkov radiation, which is emitted along the shower direction, resulting in a light pool on the ground with a radius of ∼ 130 m. Cherenkov light is produced throughout the cascade development, with the maximum emission occurring when the number of particles in the cascade is largest, at an altitude of ∼ 10 km for primary energies of 100 GeV–1 TeV. Following absorption and scattering in the atmosphere, the Cherenkov light at ground level peaks at a wavelength, λ ≈ 300–350 nm. The photon density is typically ∼ 100 photons/m2 at 1 TeV, arriving in a brief flash of a few nanoseconds duration. This Cherenkov pulse can be detected from any point within the light pool radius by using large reflecting surfaces to focus the Cherenkov light on to fast photon detectors

Cherenkov flash diagram

The Southern African Large Telescope (SALT) is the largest single optical telescope in the southern hemisphere and among the largest in the world. It has a hexagonal primary mirror array 11 metres across, comprising 91 individual 1.2m hexagonal mirrors. Even so this is small compared to the new HESS 2 mirror above which covers the area of 2 tennis courts with its 28m mirror comprised of 875 x 90cm hexagonal mirrors.



The Southern African Large Telescope (SALT) is the largest single optical telescope in the southern hemisphere and among the largest in the world. It has a hexagonal primary mirror array 11 metres across, comprising 91 individual 1.2m hexagonal mirrors. Even so this is small compared to the new HESS 2 mirror above which covers the area of 2 tennis courts with its 28m mirror comprised of 875 x 90cm hexagonal mirrors.

Click here to continue reading more on page 2 …
